ZE1700K-55-600 – 3:1 Eco Series Pump Kit 55-Gal With Reel and Meter

Model: ZE1700K-55-600

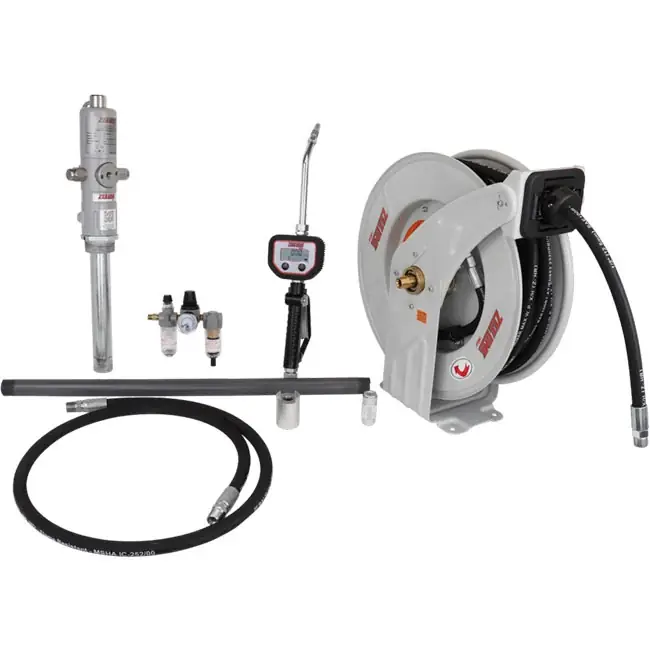

This 3:1 Pump Package was built with professionals in mind and was designed to be used with low, medium, and high viscous oils such as motor oil, transmission fluid, hydraulic oil, and more! This Pump package includes, a 50-foot hose reel, 3:1 Pneumatic Pump, Digital Oil Control Valve, Suction Tube, Foot Valve, and FRL.

This package will work with a 55-Gallon Drums. (Not Included)

Application:
The ZE1700K-55-600 is designed to meet the needs of professionals requiring precise and efficient oil handling. Ideal for use in workshops, service centers, and industrial applications, this kit provides robust performance, dependable accuracy, and ease of operation for fluid transfer from 55-gallon drums.

Includes:

ZE1700K3:1 Pump

ZE1250ORHose Reel

ZE2503Digital Oil Control Valve

Features:

Heavy-Duty Pump: 3:1 ratio oil transfer pump for medium to high viscosity fluids for short to medium distance applications.

High Flow Rate: 3.9 GPM (18LPM) flow rate allows for quick and efficient dispensing of fluids.

Variety of Fluid Types: Can be used with SAE 130 oils and fluids that include motor oil, gear oil, hydraulic oil, synthetic hydraulic oil, and transmission fluid.

Precise Oil Measurement: Accuracy rating of +/- 0.5% with a clear view LCD

Built to Deliver: The 50-foot x ½ in. diameter hose reel has a maximum pressure of 2320 PSI which allows for maximum delivery of petroleum and water based hydraulic fluids.

Specifications

Pump Ratio: 3:1 (Pneumatic Oil Transfer Pump)

Flow Rate: 3.9 GPM (18 LPM)

Delivery Rate: 1-10 GPM

Maximum Working Pressure: 1000 PSI

Accuracy: ±0.5%

Hose Reel Dimensions: 50 ft. x 1/2 In. diameter

Hose Reel Maximum Pressure: 2320 PSI

Compatible Fluids:

SAE 130 oils

Motor oil

Gear oil

Hydraulic oil

Synthetic hydraulic oil

Transmission fluid

Fluid Types: Petroleum and water-based hydraulic fluids

Drum Compatibility: 55-gallon drums

Components Included:

Pump: ZE1700K 3:1 Pneumatic Pump

Hose Reel: ZE1250OR (50 ft.)

Digital Oil Control Valve: ZE2503

Suction tube

Foot valve

FRL (Filter, Regulator, Lubricator)
