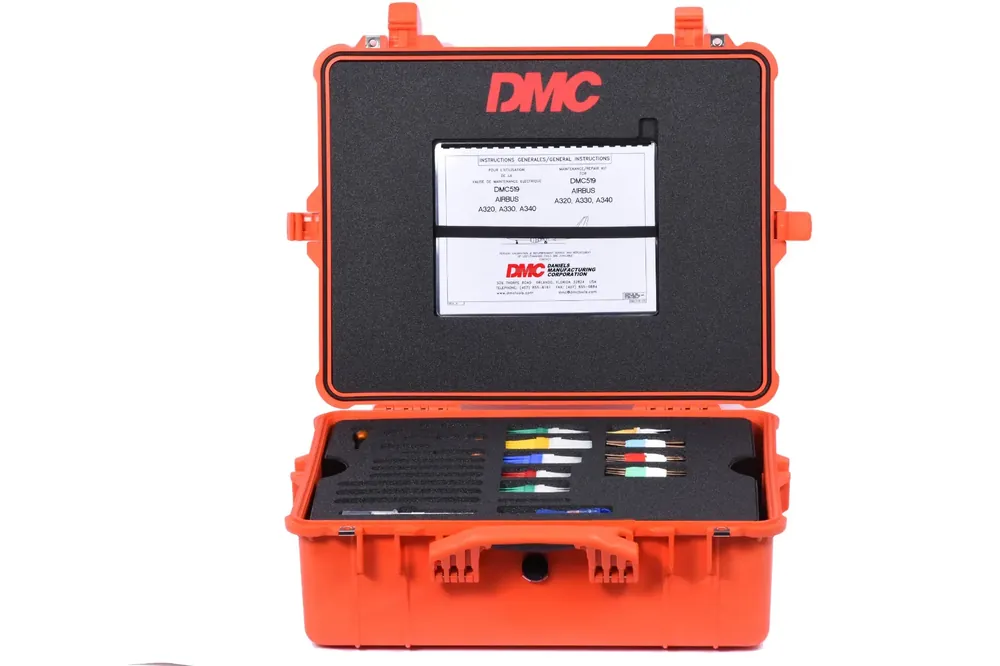

Weekend Sale DMC519

The DMC519 Airbus A318, A319, A320, A321, A330, A340 Wiring System Service Kit provides a turn-key solution and the tools necessary to strip, crimp, install and remove the typical contacts and terminals of this wiring system. The DMC519 kit includes the tool to application cross-reference information that indicates the particular tool(s) that should be selected to repair a specific connector, contact, or terminal. In addition, the kit also contains illustrated operating instructions for the designated tooling.

DMC519 CONNECTOR COVERAGE:

Air LB Junction Modules, Relay Sockets
AMP HD-22, RME Series, RF Coaxial, PIDG Insulated Terminals/Splices, Solistrand Uninsulated Terminals/Splices
Connectral 208 Series, Relay Sockets
Deutsch DBA, FDBA, 992, 983
ITT Cannon BKAE/D, DPX, DPXMA, PVW, HTAMF Series
Jupiter JAR, JA, JAM Series
Matrix Science MB, MB92, NSA93815 Series
Radiall NSX, DSX Series
Socapex RJT, JT Series
Souriau 8525, 8526, S600, 8533, 8665, 8T, 8559
Arinc 600 Rack and Panel
MIL-DTL-26500 Firewall Connectors

TOOL KIT CONFIGURATION
Type of Case: Portable
Number of Cases: 1
Color: Orange
Type of Construction: Ultra High Impact Copolymer
Application: A318, A319,A 320, A321, A330, A340
Coverage: Airframe Power Connectors, Terminals size 12 AWG and Smaller, Coaxial Connectors
Type of Inserts: Unicellular Polyethylene Foam with Die Cut Tool Cavities
