Sale!
TTC PRODUCTION 15-880-670 3/4"-16 Thread Size, ANSI Threads 10° Hook Angle, 3/4" Die Head Size, Right Hand Projection Chaser Holiday Sale
Home / Promotions & Deals / TTC PRODUCTION 15-880-670 3/4″-16 Thread Size, ANSI Threads 10° Hook Angle, 3/4″ Die Head Size, Right Hand Projection Chaser Holiday Sale

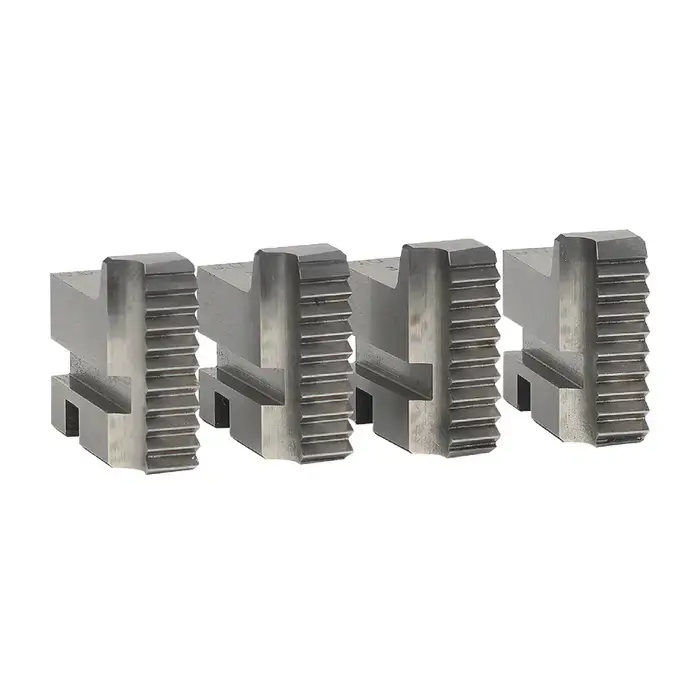

TTC PRODUCTION 15-880-670 3/4″-16 Thread Size, ANSI Threads 10° Hook Angle, 3/4″ Die Head Size, Right Hand Projection Chaser Holiday Sale

Original price was: $202.57.Current price is: $85.08.

For orders under $150.00, a shipping fee of $12.99 applies.

SKU: SKHWTA08O2V Category: Tag:
Share

Applications

  • Designed to be used in a fixed arrangement within the die head, permitting chasers to make a successive thread cut to reduce the cutting load on each individual chaser element.
  • For cutting threads with a self-opening geometric type die head.
  • Generally used for machine threading applications.
  • Well suited for a variety of ferrous and non-ferrous materials.

Features

  • Made in sets of four sequential cutters.
  • Made in the projection type.

Technical Data

  • Manufactured from high speed steel with bright finish.
  • Have a 10° hook and 33° chamfer.

Notes

Style “D” and “DS” chasers up to 3/4″ are interchangeable.
