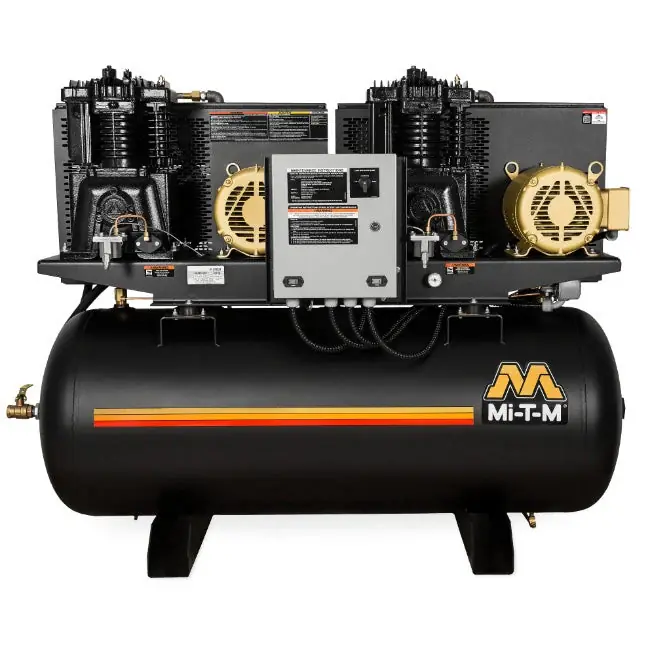

Place Order Mi-T-M ACD-23105-120HM Air Compressor 230V, 1 Ph, 46A

Mi-T-M ACD-23105-120HM – 230V, 1Phase, 46.0A – ACD M Series 5.0 HP Duplex Horizontal – 120-Gallon Air Compressor

MODEL ACD-23105-120HM

120-Gallon

ACD M Series – 5.0 HP Duplex Horizontal

The M Series air compressors are available in many motor configurations and offer maximum air power day-in and day-out.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor
Industrial low RPM motor · Magnetic start for thermal overload protection

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard

Components
ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve · 3 position switch – compressor 1 (lead motor pump), automatic alternating and compressor 2 (lead motor pump)

Models Available
ACD-23105-120HM 230V, 1Phase, 46.0A 1073 lb. ship wt./969 lb. net wt.
ACD-20305-120HM 200V, 3Phase, 32.2A 1013 lb. ship wt./909 lb. net wt.
ACD-23305-120HM 230V, 3Phase, 27.6A 985 lb. ship wt./881 lb. net wt.
ACD-46305-120HM 460V, 3Phase, 13.8A 985 lb. ship wt./881 lb. net wt.

Accessories (Not Included)

Specifications

CFM @ PSI: 36.0 @ 175

Pump RPM: 860

Tank Size: 120-gallon

Bolt Down (LxW): 34.5 x 23.5 in.

Net Weight: 969 lb.

Shipping Weight: 1073 lb.

Length: 74.00 in.

Width: 26.50 in.

Height: 58.00 in.
