Flash Sale Autel MaxiSYS IA900AS All-Systems ADAS & Alignment

Autel MaxiSYS IA900AS Wheel Alignment and All-Systems ADAS Calibration Package

Part Number: IA900AS

The Autel MaxiSYS IA900AS combines the IA900WA four-wheel alignment and ADAS calibration frame with the complete All-Systems ADAS calibration package. It includes the targets, patterns, stands, mats, and calibration components required to service forward-facing cameras, radar sensors, LIDAR, Night Vision, and other driver-assistance systems through one integrated shop workflow.

Six high-resolution positioning and tracking cameras measure alignment angles and automatically monitor vehicle height as the shop lift is raised or lowered. Robotic frame movement, automatic crossbar positioning, and optical target-position validation help technicians establish the correct frame angle, distance, and offset before calibration. Alignment measurements are accurate to 0.02 degrees for fast, precise, and repeatable results.

The included 24 in. frame-mounted touchscreen displays illustrated alignment instructions, live readings, required tools, adjustment locations, vehicle inspection data, and ADAS calibration procedures. The IA900AS includes the wheel-alignment and ADAS calibration software needed for the frame workflow. A MaxiSYS ULTRAADAS tablet and MaxiFLASH VCI are not included with this package and are available separately.

Key Features

Complete four-wheel alignment and All-Systems ADAS calibration package

Includes calibration targets and components for cameras, radar, LIDAR, and Night Vision systems

Supports LDW, AVM, BSD, ACC, LIDAR, NVS, and RCW calibration workflows

Six high-resolution positioning and tracking cameras

Alignment reading accuracy to 0.02 degrees

Cameras automatically track vehicle height as the shop lift moves

Robotic frame movement and automatic crossbar positioning

24 in. frame-mounted touchscreen display

Optical target-position validation verifies angle, distance, and offset

Illustrated alignment instructions, live readings, required tools, and adjustment locations

Vehicle coverage for U.S., Asian, and European vehicles from 1996 and newer

Folding crossbar and mobile frame for easier movement and storage

Wheel-alignment and ADAS calibration software included

One-year limited warranty

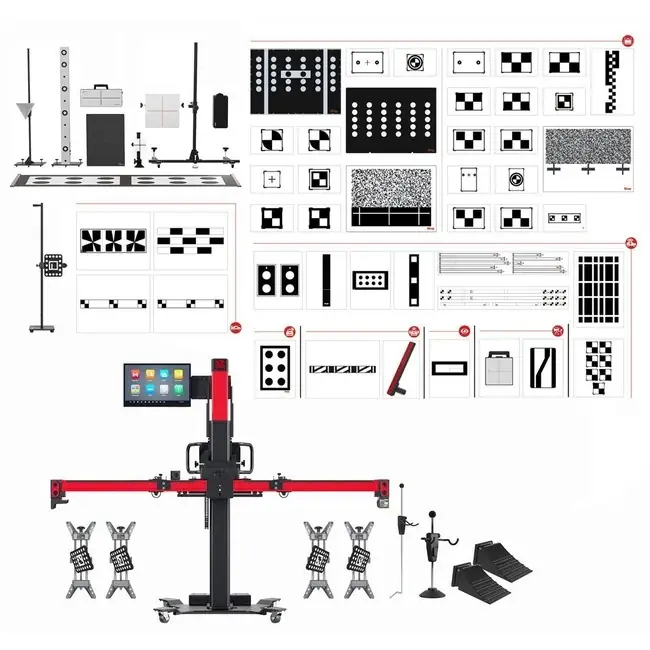

Included Components

IA900WA mobile wheel alignment and ADAS calibration frame

24 in. touchscreen display mounted to the frame

4 wheel clamps with camera targets

4 wheel targets

Distance target

Steering wheel lock

Brake pedal lock

2 wheel chocks

Lane Departure Warning target and pattern package

Around View Monitoring calibration components

Blind Spot Detection calibration components

Adaptive Cruise Control radar calibration components

LIDAR calibration components

Night Vision calibration components

Rear Collision Warning calibration components

Target stands, mats, storage cases, and application-specific calibration accessories

Wheel-alignment and ADAS calibration software

Calibration Coverage

Lane Departure Warning and forward-facing camera systems

Around View Monitoring and surround-view camera systems

Blind Spot Detection systems

Adaptive Cruise Control radar systems

LIDAR systems

Night Vision systems

Rear Collision Warning systems

Four-wheel alignment, advanced alignment measurements, and steering-angle procedures

Equipment Sold Separately

MaxiSYS ULTRAADAS wireless diagnostic tablet

MaxiFLASH vehicle communication interface

Warranty Information

Includes a 1-year limited warranty. The purchase of an IA900 system may also include in-shop setup and onboarding training performed by an Autel ADAS specialist. Training availability should be confirmed at the time of purchase.

Specifications

System Type: Mobile four-wheel alignment and All-Systems ADAS calibration package

Part Number: IA900AS

Base Frame: MaxiSYS IA900WA

Vehicle Coverage: U.S., Asian, and European vehicles from 1996 and newer

ADAS Coverage Included: LDW, AVM, BSD, ACC, LIDAR, NVS, and RCW

Alignment Accuracy: 0.02 degrees

Positioning and Tracking Cameras: 6 high-resolution cameras

Frame-Mounted Display: 24 in. touchscreen

Software: Wheel-alignment and ADAS calibration software included

Tablet Included: No

VCI Included: No

Minimum Crossbar and Target Height: 6 in.

Maximum Crossbar and Target Height: 7 ft.

Shipping Configuration: 3 freight pallets

Pallet 1 Shipping Weight: 655 lb.

Pallet 1 Shipping Size: 86 in. L x 52 in. W x 42 in. H

Pallet 2 Shipping Weight: 475 lb.

Pallet 2 Shipping Size: 60 in. L x 59 in. W x 44 in. H

Pallet 3 Shipping Weight: 300 lb.

Pallet 3 Shipping Size: 88 in. L x 48 in. W x 40 in. H

Warranty: 1-year limited warranty

UPC: 849438014322
