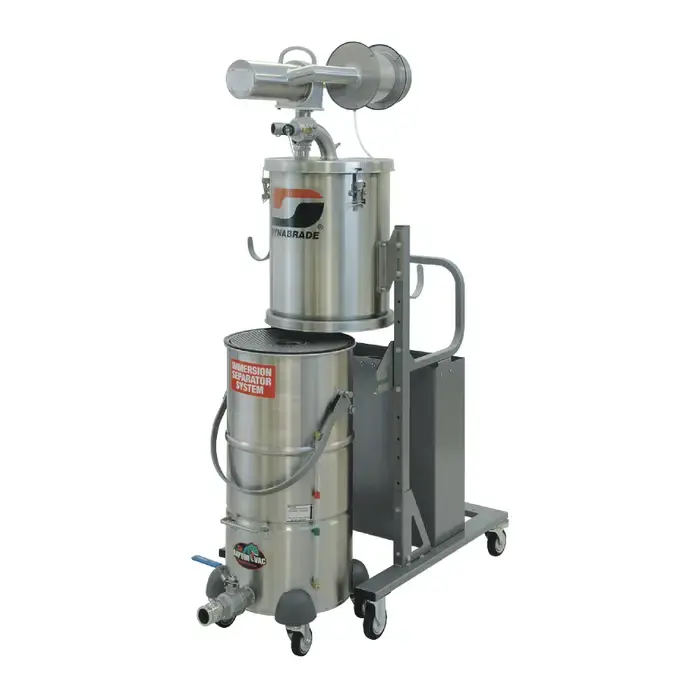

DYNABRADE 61463 7.9 Gallons Tank Capacity, 1-1/4″ Hose Diameter Drum Vacuum Pump Secure Checkout

Applications

Explosion and dust ignition proof, For dry only source capture, Division 1 immersion separator, 1.3 gallon capacity of dust collection into 7.9 gallons.

Features

• Designed for dry-only source capture.
• Equipped with Coalescing Filter Element (CFE) for moisture removal.
• Utilized for the recovery of metallic, conductive and explosive dusts, into a liquid immersion bath such as water, paraffin oil or mineral oil. Renders hazardous dust inert.
• Recovery capacity of 1.3 gallons (5 liters) of dust into 7.9 gallons (30 liters) of neutralizing liquid.
• Legally certified as explosion-proof and dust ignition-proof.
• Includes HEPA Filter with 99.995% efficiency on 0.3 micron. Filter is located downstream of the motor.
• Stainless steel recovery tank (SAE 304). Easy “one click” detaching and connecting of tank.
• Unit is static-dissipating (kit included) and conductive.
• Aerosol leak tested for quality assurance.
• Equipped with lightweight conductive coaxial hoses, easy-glide cart and tool basket.
• Dynabrade recommends the use of Mineral Oil with viscosity of 10.5 cSt.

Includes

(2) 20′ 1-1/4″ diameter hoses, (1) cart, (1) tool basket

Technical Data

Vacuum For Use In

• Group E atmospheres, containing potentially combustible dusts, including aluminum, magnesium, and other commercial alloys.

Certifications

• Designed for use in Class I, Division 1, Groups A, B, C and D T6 and Class II, Division 1, Groups E, F, G, Hazardous Locations as defined in the National Electric Code (NFPA 70).
• GUARANTEED for the safe recovery of combustible/conductive dusts and/or flammable liquids.

Technical Documents & Manuals

• Operation Manual
