QSP DB-28 Set of 4 portable alignment stand with built in Turnplates

MODEL : DB-28

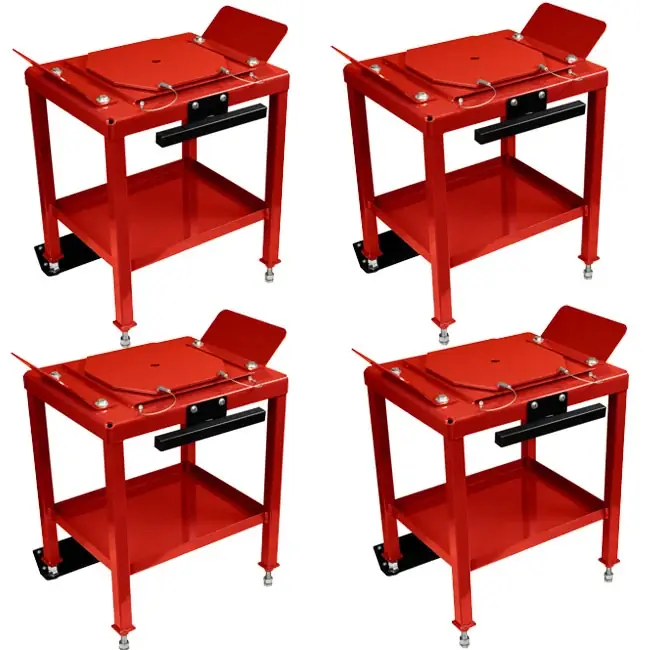

New design in wheel alignment has the turnplates and slip plates built right into the stands. Set of 4-28″ tall stands with wheel and handle kit Included on each stand for easy positioning.These stands are made with 1/4 steel tops and are rated at 2500 lbs. per stand.

Alignment Stand Leveling Procedure

Alignment stands are mobile so that various wheel bases and track width vehicles can be

accommodated. The alignment stand feet are also adjustable to accommodate variations in garage floor

elevations. The goal of this procedure is to have all alignment stands level and at the same elevation.

Refer to your alignment system’s requirement for the level tolerance of your working surface. This

will probably be in the range of 1/16” to 1/8” for all alignment stand turnplate tops to be level to each

other. All leveling and elevation adjustments are made by adjusting the threaded feet on the alignment

stands.

Choose one of the front stands either right hand or left hand to as your “home” position. All other

stands will use this “home” alignment stand to reference their location. Once it is determined which

stand is home, it is a good idea to mark the location of the home stand on the floor so that it can be

quickly replaced for future wheel alignments procedures.

The next steps are best achieved by using a laser level similar to a Bosch GLL 2-20.

Lock the home position turnplate with the lock pins attached to the alignment stand. By adjusting

the threaded feet on the bottom of the alignment stand, level the stand using a bulls eye bubble

level on the turnplate or similar device so that the turnplate is level side to side and front to rear.

Locate the other three alignment stands for the wheel base and track width of the vehicle to be

aligned. Be sure that all of the turnplates are in the locked position by using the attached lock pins.

Place the laser level on the “home” alignment stand turnplate. Using a tape measure, a bulls eye

bubble lever, and the laser level make sure that all of the alignment stand turnplates are level and at

the same elevation within your alignment system’s tolerance.

Specifications

Set of 4-28″ tall stands

wheel and handle kit Included

Rated at 2500 lbs. per stand
